Contents

驗證快速檢查JSON方法

 included in 實用工具
   644 words   4 minutes

最近收到一份JSON格式資料
要實作一個API程式
在沒有任何文件囧境
看完好幾千行JSON
後來用Firefox下比對JSON長度
但測試實候發現有些 integer 型態我傳成 string
我發現單純用Firefox肉眼看不行
在想有什麼實用工具可以驗證

檢查JSON type

Paste JSON as Code -vscode套件

Paste JSON as Code - Visual Studio Marketplace
Paste JSON as Code 可以產生JSON Schema
還可以產生測試程式
有測試nodejs，還是無法知道哪裡有問題

1
2
3
4
5

aa = require('./json_check');

aa.testToJson(`{
    "test": "test"
}`);

他還能產生JSON schema
可以把JSON Schema貼到這個上面
下面會回傳錯誤訊息
JSON Schema Validator - Newtonsoft

線上驗證工具

JSON Schema Validator - vscode套件本機好像失效，評價3顆星….
Json Schema with VS Code – Omkar’s Tech Blog

範例
GitHub - omkarmore83/json-schema-vscode-example: Examples for Json Schema with Visual Studio code

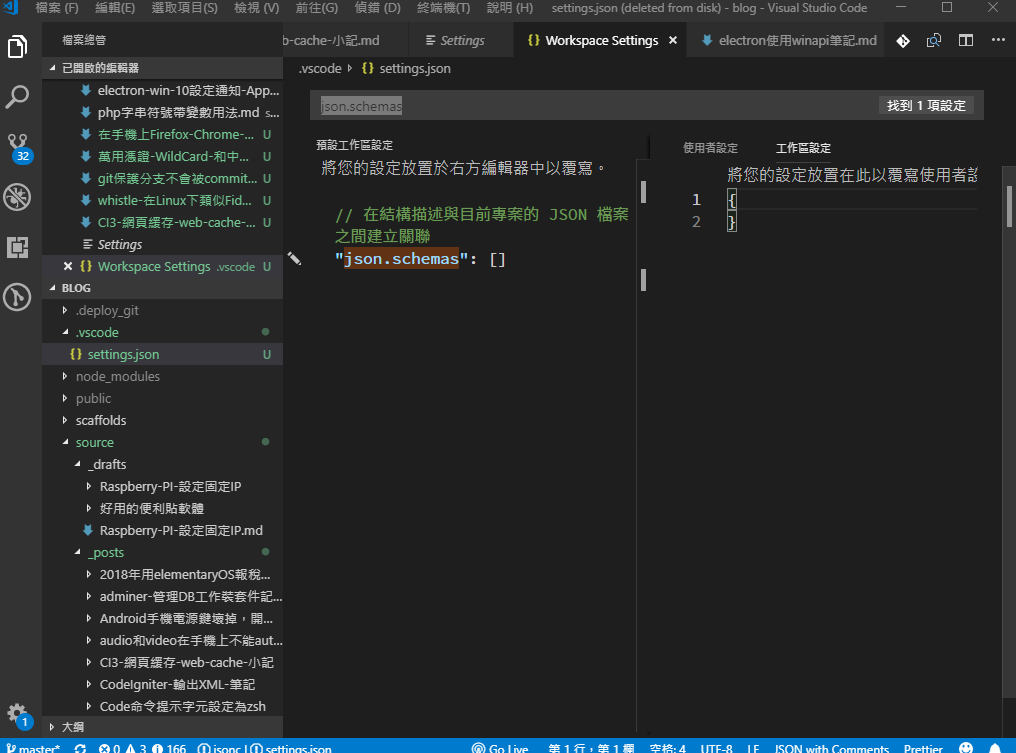

內建VSCODE就有檢查工具

內建就有的功能，但必須設定schema
JSON editing in Visual Studio Code

./1.png
這邊可以選擇工作區域

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139

{
    "json.schemas": [
        {
            "fileMatch": [
                ".myconfig"
            ],
            "schema": {
                "$schema": "http://json-schema.org/draft-04/schema#",
                "properties": {
                    "$schema": {
                        "type": "string"
                    }
                },
                "patternProperties": {
                    "Questions_(EN|DE)$": {
                        "$ref" : "#/definitions/questions-schema"
                    }
                },
                "additionalProperties": false,
                "definitions": {
                    "questions-schema": {
                        "type":"array",
                        "items": {
                            "$ref" : "#/definitions/question-schema"
                        }
                    },
                    "question-schema": {
                        "properties": {
                            "question" : {
                                "type": "string"
                            },
                            "option_1": {
                                "$ref": "#/definitions/option-schema"
                            },
                            "option_2": {
                                "$ref": "#/definitions/option-schema"
                            },
                            "option_3": {
                                "$ref": "#/definitions/option-schema"
                            },
                            "option_4": {
                                "$ref": "#/definitions/option-schema"
                            },
                            "correct_option": {
                                "type": "integer",
                                "minimum": 1,
                                "maximum": 4
                            },
                            "moreInfo": {
                                "type": "string"
                            },
                            "level": {
                                "type": "integer",
                                "minimum": 1,
                                "maximum": 10,
                                "description": "Level inditates the deficulty of the question. Valid values between 1 and 10"
                            },
                            "category": {
                                "$ref": "#/definitions/category-schema"
                            },
                            "multimedia": {
                                "type": "array",
                                "items": {
                                    "$ref": "#/definitions/multimedia-item-schema"
                                }
                            }
                        },
                        "required":[
                            "question",
                            "option_1",
                            "option_2",
                            "option_3",
                            "option_4",
                            "correct_option"
                        ],
                        "additionalProperties": false,
                        "defaultSnippets": [
                            {
                                "label" : "New Question",
                                "description": "Creates a New Question template",
                                "body": {
                                    "question": "$1",
                                    "option_1": "$2",
                                    "option_2": "$3",
                                    "option_3": "$4",
                                    "option_4": "$5",
                                    "correct_option": "^$6"
                                }
                            }
                        ]
                    },
                    "category-schema": {
                        "enum": [
                            "GEOGRAPHY",
                            "HISTORY",
                            "MATH",
                            "CURRENT_AFFAIRS"
                        ]
                    },
                    "multimedia-item-schema": {
                        "type": "object",
                        "properties": {
                            "id" : {
                                "type": "string"
                            },
                            "type": {
                                "type": "string"
                            },
                            "path": {
                                "type": "string"
                            }
                        },
                        "required": [
                            "id",
                            "type",
                            "path"
                        ],
                        "additionalProperties": false
                    },
                    "option-schema": {
                        "oneOf": [
                            {
                                "type": "string"
                            },
                            {
                                "type": "object",
                                "properties": {
                                    "image": {
                                        "type" : "string"
                                    }
                                }
                            }
                        ]
                    }
                }
            }
        },
    ]
}

當然全部都塞到這邊很難管理

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

{
    "json.schemas": [
        {
            "fileMatch": [
                "/lyric.api.json"
            ],
            "url": "./lyric.schema.json"
        }
    ]
}

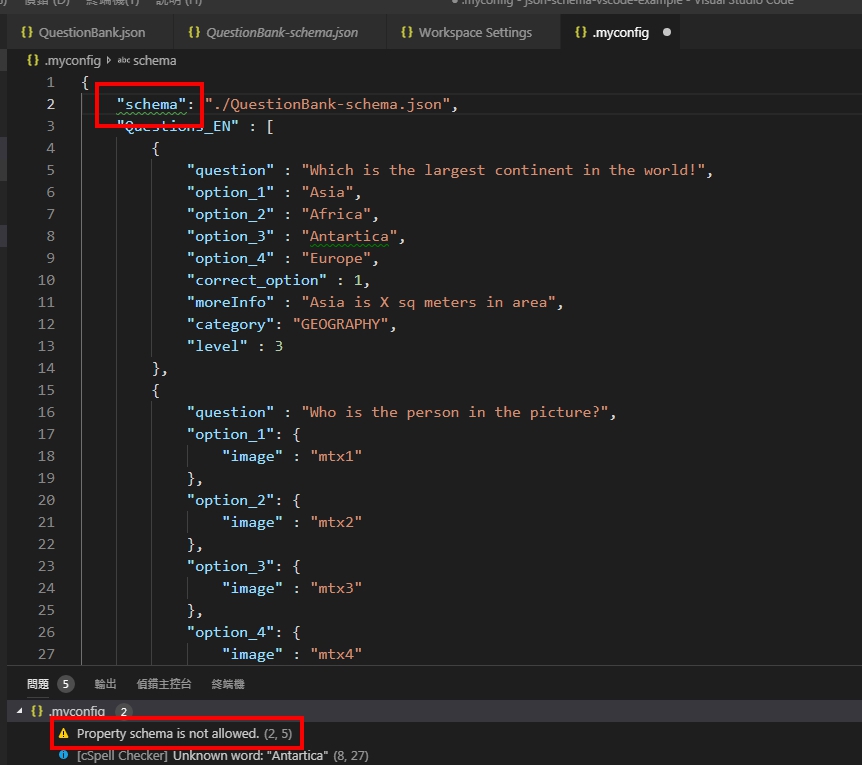

比較注意的地方fileMatch不需要加.
加.反而找不到位置
可搭配*用在fileMatch

./2.jpg

其他工具

GitHub - java-json-tools/json-schema-validator: A JSON Schema validation implementation in pure Java, which aims for correctness and performance, in that order

一些JSON SCHEMA範例
JSON Schema Store

做完這個，我發現XML要怎麼快速檢單驗證呢
但發現XML有一個叫XSD

一些工具如下，參考來源:XML Schema(XSD)验证工具？ - 码客
Xerces
xmlstarlet
XML validator and editor for Windows
Download XML Notepad 2007 from Official Microsoft Download Center
筆記：Java IDE 從 XSD 轉出 XML – Aya Wong – Medium
W3C XML Schema (XSD) Validation online
Jax 的工作紀錄: [PHP][Java][C#] 用 XSD 驗證 XML

最後找了範例用在W3C XML Schema (XSD) Validation online
可以驗證成功

1
2
3
4
5
6
7
8

<?xml version="1.0"?>
<!DOCTYPE note SYSTEM "http://www.w3school.com.cn/dtd/note.dtd">
<note>
<to>George</to>
<from>John</from>
<heading>Reminder</heading>
<body>Don't forget the meeting!</body>
</note>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

<?xml version="1.0"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://www.w3school.com.cn"
xmlns="http://www.w3school.com.cn"
elementFormDefault="qualified">

<xs:element name="note">
    <xs:complexType>
      <xs:sequence>
	<xs:element name="to" type="xs:string"/>
	<xs:element name="from" type="xs:string"/>
	<xs:element name="heading" type="xs:string"/>
	<xs:element name="body" type="xs:string"/>
      </xs:sequence>
    </xs:complexType>
</xs:element>

</xs:schema>

之後有用到，再寫一篇記錄出來

Updated on 2018-10-20
